Industrial Pressure Blowers and High Pressure Pressure Blowers

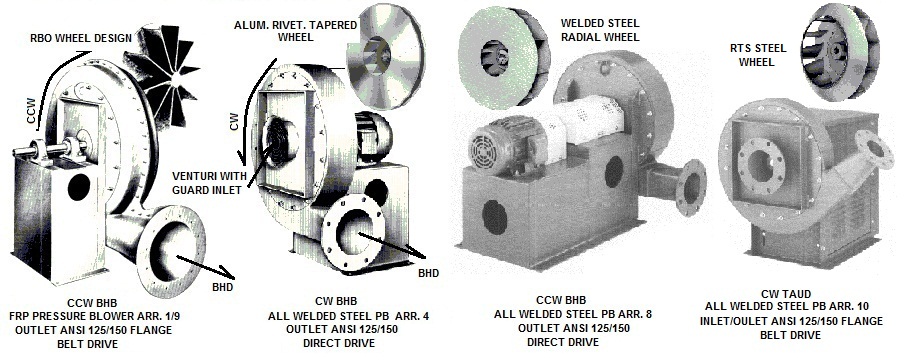

PB, HPPB, CB, E, R, RE: industrial pressure blowers and high pressure radial ventilators supplied in cast aluminum, cast iron, or all-welded construction to prevent flexing at high pressure. Available in direct drive fan arrangements 4/4V/4H/7/8 and belt drive arrangements 1/9/10. Blower capacities: to 10,000 CFM. Single stage pressure blowers develop up to 4 psi static pressure. Two stage pressure blowers and multistage pressure blowers are for higher pressure.

Aluminum blower wheel, Steel wheel, or Alloy wheel: industrial pressure blower and high pressure blower wheels are of riveted, cast, or all welded fan construction. Flat wheel, tapered wheel, and dual tapered blower wheel design. Available with RBO radial self-cleaning fan blades; RTS radial tip blades; BI backward inclined blades, or BC backward curved non-overloading blower blades. Alloy wheels are available in SS 316L, SS 304, SS 204, monel, corten, FRP, and abrasion resistant fan construction. The ventilator pressure curve remains stable from wide open to closed off position without pulsation on all wheel designs.

Inlet flanges, outlet flanges, companion flanges: continuosly welded to match ANSI class 125/150, DIN, ISO, or custom hole pattern.

Shaft seals, low leakage, zero leakage, gas tight, airtight blower construction: shafting is straightened to close tolerance to minimize "run-out" and ensure smooth operation. Ceramic shaft seal and lubricated fan shaft seals (Buna, Teflon, Viton) are standard. Red silicone gasketing, gas-purgeable, double carbon ring shaft seal, gas-tight, or airtight construction, and zero-leakage fan construction.

Heat fan construction up to 700 F: includes high temperature paint, shaft cooler, shaft-cooler guard, steel, or alloy wheel.

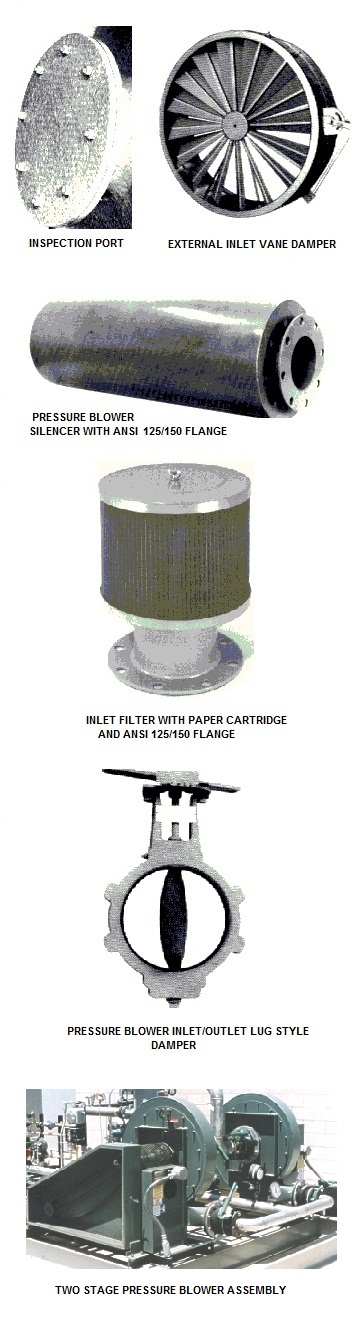

Fan cladding for sound attenuation and silencers: cladding consists of 2 inches mineral-wool insulation covered with a welded steel jacket. Acoustic cloth jackets. Inlet silencers/outlet silencers supplied with matching flanges, or inlet/outlet venturi with guard, or plain pipe connection.

Blower inlet filter assemblies: cartridge type, with polyester element / wire mesh oil wetted element / high flow synthetic element / paper element. Available with protective hood, or hood-silencer.

Standard accessories: flash / raised access door, inspection port, drain and plug, unitary base, shaft and bearing guard, belt guard, motor cover, spring vibration isolation, rubber-in-share (RIS) vibration isolation, vibrating pads, wafer style / lug style outlet damper and electrical / pneumatic actuators.

Controls and drives: variable frequency drives (VFD), across-the-line starters, RTDs, pressure sensors, flowmeters - complete control packages in NEMA 1, NEMA 3R, NEMA 4 enclosure.













Design of industrial process and OEM fans, heavy duty process ventilators, baghouse fans, low leakage fans and blowers, fan / blower impellers, airfoil fans, acoustafoil ventilators, unifoil fans, plant ventilation fans, explosion proof building ventilation fans, TCF twin city ventilators, Sheldons engineering blowers, conveying blowers, air tight blowers & fans, industrial process air curtains, OEM fans / blowers, fume exhausters, dust collectors.

Installation of heavy-duty Industrial ventilators / blowers / fans, Level 3 big industrial fans, super high pressure blowers, New York Blower, Twin City Fan, Aerovent, Chicago Blower, high temperature oven circulation plug ventilators and air kit fans, stainless steel pressure blowers and fiberglass FRP axial fans and centrifugal blowers NYB TCF
Manufacturer of I.D. blowers, F.D. blowers, force draft fans, force draft blowers, blow off ventilators / fans, PVC FRP SST ventilators, squirrel cage blower fans, high pressure centrifugal ventilators, Chicago blowers, aluminum fans, stainless steel ventilators, hot air blowers, heating fans, high temperature oven ventilators, high pressure air blowers, squirrel cage blower wheels, Peerless Dayton ventilators, Sheldons blowers, New York fans NYB, TCF, Delhi fans blowers.
