Canadian Blower VaneAxial Fans
Canadian Blower and Forge
VaneAxial inline duct Fans
for variable volume air handling applications utilize adjustable pitch
high efficiency aerofoil aluminum fan propellers to provide optimum
performance.
Buffalo Type VPS Adjustax have an internal fan blade pitch adjustment,
which allows to bring variable air volume capability for air
conditioning, heating and ventilating applications.
Canada Blower VSBD vaneaxial fan
is designed for highly corrosive environments and high temperature
applications where an aluminum wheel is not suitable. Standard
construction can accommodate operation to 200°F (93°C) and can
be customized to handle up to 300°F (148°C). Steel construction
is standard on this ventilator. The VSBD fan is also available in
stainless steel.

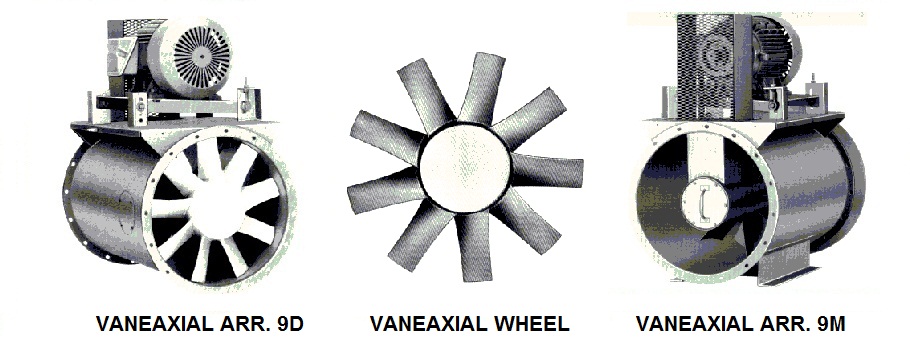

Canada Blower VSBD's steel propellers are manufactured with a spun
steel hub. Steel fan blades are welded to the hub and can be attached
at precise angles ranging from 30° to 50°.
For applications requiring extensive corrosion resistance or operation
at higher temperatures than standard, Canada Blower Arrangement 9 VSBD
/ TSBD fan is the perfect choice. Standard Canada Blower ventilator
construction is good for operation to 200°F; fans can be customized
to handle up to 300°F. Steel fan construction is standard, all
stainless steel construction is available. Driven by either a fixed or
adjustable V-belt drive system, the exact point of fan rating can be
achieved. A future change in rating can be accomplished through a
simple sheave change.

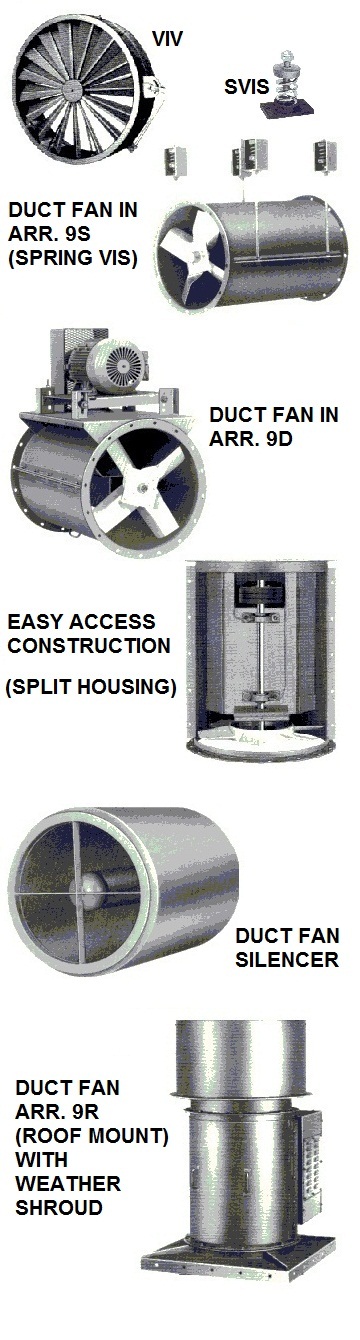

Clamshell Design Vaneaxial Fans are used primarily in applications where ready access to the interior of the fan is desired. The entire bearing assembly can be removed quickly and easily, without removing the fan from the stack. Heavy duty pillow block anti-friction bearings with split inner cylinder are standard. Clamshell design vaneaxial fans are avaiable with steel wheels and aluminum fan wheels.
Spray Booth Design Vaneaxial Fans are available in standard belt drive arrangement 9. These fans are designed for use in spraybooth installations, or in a variety of applications where requirements make it necessary to clean the fan periodically. Standard ventilator accessories include: inlet / outlet cones, inlet bell, screensfor fan, cone, or bell; belt guard, weather proof motor and drive cover, spark resitant construction with aluminum wheels, or steel wheels with bronze tipped blades; support legs, suspension clips, shaft seals are also available as standard options.
Spark Resistant X-proof construction on tubeaxial and vaneaxial fans is available in all aluminum airstream (AMCA A) construction; aluminum wheel (AMCA B) construction; and steel wheel with bronze tipped fan blades and shaft retainer (AMCA C) construction.
High temperature fan construction: upon request Buffalo vaneaxial fans can be furnished with optional high temperature construction for oven exhaust, or combusting gases exhaust applications.
Corrosion resistant
construction and chemical duty construction:
for corrosive environment all vaneaxial fans are available in FRP
construction, as well as in 304 SS, 316 SS, or 316 L stainless steel
construction. Special coatings are optional and selection is made based
on the fan application.
http://www.tenderall.com/index.html
http://www.tenderall.com/ahu/index.html
http://www.tenderall.com/airhandler/index.html
http://www.tenderall.com/blower/index.html
http://www.tenderall.com/blowerwheel/index.html
http://www.tenderall.com/contact/index.html
http://www.tenderall.com/fanblower/index.html
http://www.tenderall.com/hvac/index.html
http://www.tenderall.com/inquiry/index.html
http://www.tenderall.com/ventilator/index.html
Engineering
Sales of Buffalo Blower / New York
blower and fans, American Coolair, ILG Chicago, Illinois Blower,
Industrial Gas
Engineering Industrial air products, fan and blower including high
temperature;
high pressure blowers and fans, pressure blowers, heavy duty industrial
process
fans and blowers. Super high temperature fans, air tight and zero
leakage
blowers and centrifugal axial fans, explosion
proof fans and ventilators. Canada Blower
Company is a Industrial regenerative pressure blowers, ILG commercial
fans, high-temperature centrifugal and axial blowers, high pressure
side channel blowers, OEM fans, roof and wall exhausters, ventilation
equipment, HVAC, heating ventilating and air-conditioning equipment,
process and O.E.M. blowers, custom built fans, ventilators, dust
collection and combustion pressure blower fans.
Canada Blower Co. offers a PT Power Tube Make-Up Air System a sone of
the most economical options for larger industrial plants ventilation
air make up.
When exhaust fans are used to provide ventilation, both for industrial
and process exhaust and personnel comfort, a negative air pressure is
created within the building. This negative pressure causes several
problems:
- Process exhaust systems are less efficient and may not work properly.
- Down flow can occur through gravity vents and result in the back
venting of products of combustionfrom flues and stacks of heaters and
process equipment.
- Drafts are created that are a dsicomfort to employees. Safe operating
of outside doors may even be impaired.
Our Power Tube Fan Make-Up Air System solves all of these problems
economically, even on the coldest winter day.
In the winter, conventional make-up air systems have to heat the cold
outside air prior to introduction into the building. This is an
expensive process in both equipment and continuing energy cost. The
Power Tube Fan Make-Up Air System is a simplier system that utilizes
wasted building heat and basic aerodynamic principles for supplying,
tempering and distributing make-up air. And that makes it less
expensive than conventional make-up air systems to purchase, to install
and to operate.
PT Power Tube Fan Make-Up Air System uses a special propeller fan with
straightening vanes and fan housing mounted to an opening in a building
sidewall near the ceiling (an optional roof mounting model is
available). A motor operated wall shutter is attached to the outside
wall opening under a protective weather hood. A long specially
constructed reinforced polyethylene tube is connected to the fan
discharge orifice to carry fresh outside air throughout the building
and temper it by mixing cold outside air with warm inside air near the
plant ceiling before it reaches floor level.
Specially sized and spaced discharge holes in the polyethylene tube
produce relatively high velocity turbulent jets of air. This turbulent
jet flow swirls and mixes surrounding air particles resulting in the
entrinment of the warm ceiling air and the complete tempering of very
cold outside air within a relatively short distance. The result is
heated make-up air at the price of unheated make-up air.
Power Tube Make-Up Air Fans are available in Sizes 18 to 48 for for air
flows up to 40,000 CFM.
PT Power Tube Make-Up Air System tube is constructed of thick woven
high density polyethylene fiber(8 x 8) laminated with poly coating to a
thickness of 6 Mils. It is 3.8 oz. per square yeard material. Burst
strength is 118 Lbs per square inch. The material is flame retardant
and complied with NFPA Standard 701. Tubes are available in two colors:
blue and white. One end of the polyethylen tube is factory dealed.
Sufficient make-up air should be provided to balance exhaust from
general ventilation and process ventilation. Usually several Power Tube
Fans will be required, located to distribute air throughout the plant.
If additional tempering of make-up air in specific plant areas becomes
necessary, unit heaters can be added.
OTHER BLOWERS AND FANS CANADA BLOWER SUPPLY:
- Combustion air supply blowers;
- Oven circulation fans;
- Pneumatic conveying blowers;
- Dust collector fans;
- Super high pressure fans;
- Material handling blowers;
- Exhaust and supply process fans.
