Industrial and OEM backward inclined fans and blower, backwardly inclined blower / fan wheel blades, high temperature efficient backward inclined fans.
Canadian fans

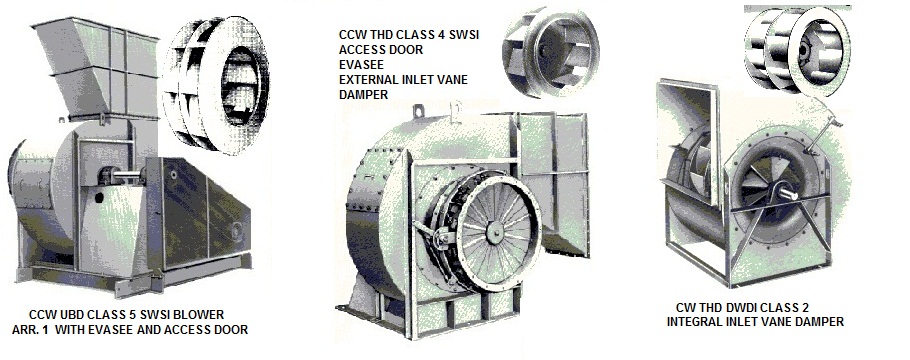

Industrial backward inclined (BI) fan blower

SWSI, DWDI, AcF, PLR, BI, BC, AF, ST, Backward Inclined Fans, Aerocline, General Purpose, GP, BL, Limit Load, LL, Buffalo Vent Set, BCV, BCA, BCM, BCS: industrial backward inclined blowers supplied in welded heavy gauge steel construction to prevent flexing at high pressure. Available in direct drive arrangements 4/4V/4H/7/8 and belt drive fan arrangements 1/3/9/10. Arr. 10 blowers are known as ventilating fan sets (vent sets). Available in single width single inlet (SWSI), or double width double inlet (DWDI) ventilators wheels. Capacities: to 500,000 CFM. Static pressure up to 100 inches water gauge depending on the class of construction. Typical class of fan construction is Class 1, 2, 3, 4, 5.

Aluminum wheel, Steel wheel, or Alloy wheel: industrial backward inclined (bi) blowers and fans are supplied with aluminum fan wheel or corten wheel to meet requirements of AMCA A, and AMCA B spark resistant fan construction. Mild steel ventilator wheels are of all welded construction. If higher pressure is required wheel can be furnished of high strenght steel. Stainless steel wheel in 304 SS, 316 SS, 316 SS, 2205 SS are supplied for corrosive applications, or high temeparature fan applications. The blower pressure curve remains stable to the right of the pick point.

Inlet flanges, outlet flanges, companion fan flanges: continuosly welded to match ANSI class 125/150, DIN, ISO, or custom hole pattern.

Shaft seal and low leakage fan construction: shafting is straightened to close tolerance to minimize "run-out" and ensure smooth operation. Teflon shaft seal, ceramic fan shaft seal and lubricated shaft seals (Buna, Teflon, Viton) are standard. Red silicone gasketing is provided for low leakage construction and for high temperature fan construction.

Heat fan construction up to 800 F: includes high temperature paint, shaft cooler, shaft-cooler guard, and steel fan wheel, or alloy blower wheel.

Cladding for sound attenuation and silencers: fan  cladding consists of 2 inches mineral-wool insulation covered with a welded steel jacket. As an inexpensive alternative is offered slide-on acoustic cloth jackets. Inlet silencer / outlet fan silencer are supplied with matching flanges for further attenuation of the noise level.

Inlet filter assemblies: cell type, 1 inch, or 2 inch filters are available with filter cabinet to be mounted at fan inlet. Bird guard, insect screen and weather hood are optional accessories with blower's inlet filter package.

Standard accessories: flash / raised access door, inspection port, drain and plug, unitary base, shaft and bearing guard, belt guard, motor cover, spring vibration isolation, rubber-in-share (RIS) vibration isolation, vibrating pads, outlet damper, inlet vane damper, external inlet vane damper, electrical / pneumatic actuators.

Controls and drives: variable frequency drives (VFD), across-the-line starters, RTDs, pressure sensors, flowmeters - complete control packages.
